WDF Series

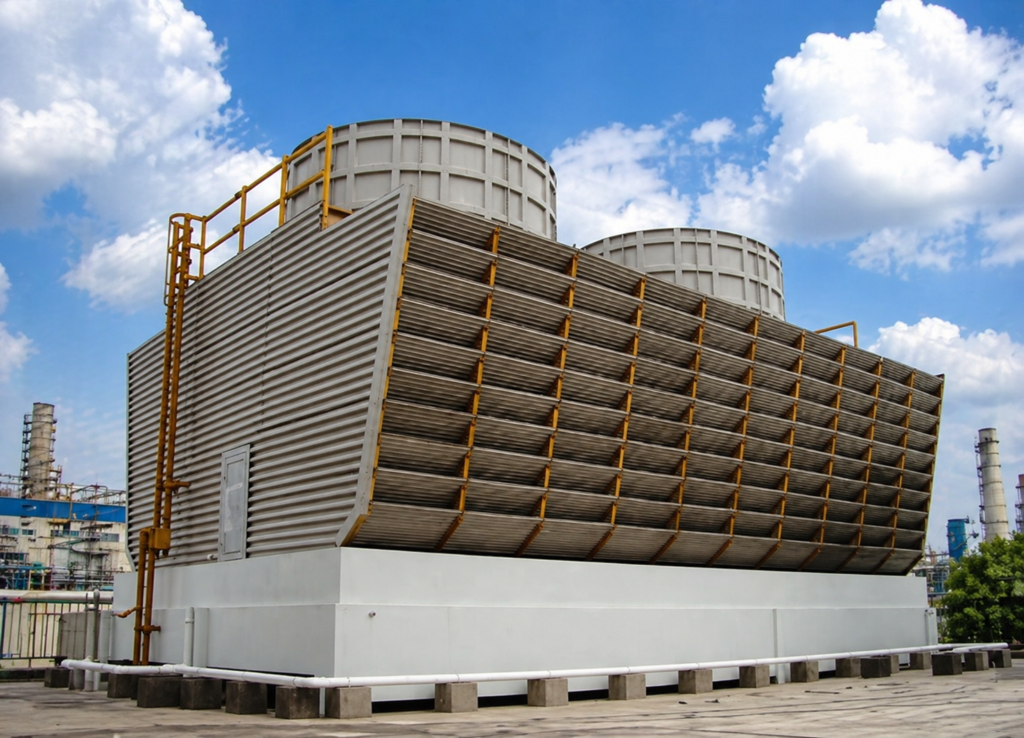

WDF Series Cooling Towers Structure
The structure of the cooling tower made of the best grade of pinewood pressure impregnated by chromate copper arsenate to prevent it from any bacterial attack. lt is bolted and designed for 30 pounds/Sq ft wind load. We have option of FRP pultruded profile structure in place of Pine Wood.
FRP Angles, Channels and Pipes provides strong and corrosion proof structure as perfect solution to the need of cooling tower structure problems.
The structure of the cooling lower mode of the best grode of pinewood pressure impregnoted by chromofe copper orsenole to prevent it from ony bocleriol oftock. lt is bolted ond designed for 30 pounds/Sq ft wind lood.
Spares and Components of WDF Series Cooling Towers:
Louvers & Casing
Corrugated asbestos cement board casing is applied vertically. Joints are lapped and sealed for water tightness. Corners are covered with FRP corner rolls. Corrugated asbestos louvers are located on wide centres on the sloping louvered walls. They are supported by tower columns and louver support. (FRP casing and louvers can be provided if desired)
Internal Fills
Splash bars are made of preservative-treated wood with a choice of PVC ‘V’ type or ‘C’ type bars.
Drift Eliminators
Specially designed eliminators are made in replaceable modules. Each module can be taken out easily, cleaned and put back into position in no time. Eliminates drift loss to less than 0.1%.
Hot Water Distribution System
The hot water distribution system is of open gravity type and is constructed from boiling water proof marine plywood with polypropylene target nozzles.
Target Nozzles
The target nozzles used in the hot water basin are specially designed to deliver required water distribution and are highly resistant to temperature and weathering damage. The use of target nozzles also eliminates the need for a separate diffusion deck to provide complete water distribution throughout the fill area. These nozzles operate under gravity.
